Ball Mill Metal Spare Parts
JCH-TIKTOP specialize in the R&D, production and sales of accessories for mining grinding equipment, and have long provided complete sets of metal components and wear parts for ball mills to industries including metal mines, sand & aggregate processing, building materials, cement, metallurgy and chemical engineering.Adopting precision casting, heat treatment and CNC machining processes, we use wear-resistant materials such as high manganese steel, high-chromium alloy and high-strength alloy steel. Our product range covers core metal components including ball mill shell liners, end liners, diaphragm plates, grate plates, fastening bolts, pressure bars, hollow shaft sleeves and inlet/outlet liners.With precise dimensions and strong compatibility, our products meet the continuous operation requirements of ball mills under various working conditions such as dry grinding, wet grinding, high impact and severe abrasion, effectively improving grinding efficiency and reducing equipment downtime and maintenance costs.
I. Core Metal Component Series for Ball Mills
Ball mill metal components are the key load-bearing and wear-resistant parts that directly determine the operational stability and service life of the equipment.We provide a full range of standard and custom non-standard metal components covering all parts of ball mills:
1. Wear-Resistant Liners for Ball Mills

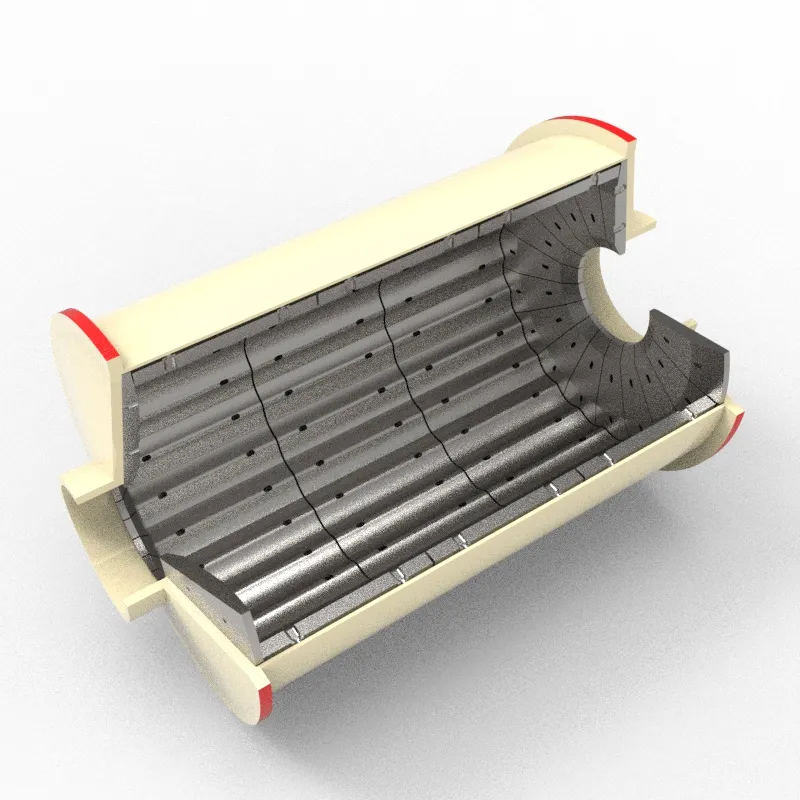

- Shell Liners: Including flat liners, stepped liners, wave liners and lifting liners, used to protect the mill shell and lift steel balls to enhance grinding efficiency.
- End Liners: Designed for the inlet and outlet ends of ball mills, featuring high impact resistance, erosion resistance and structural strength.Liners are available in high manganese steel, high-chromium alloy and alloy steel, with structures and hardness tailored to actual working conditions.
2. Screening Metal Components
- Diaphragm Plates: Used to separate mill chambers, control material flow rate and grinding fineness, with stable structure and high deformation resistance.
- Grate Plates / Screen Plates: Applied for material screening and discharge control, featuring uniform openings, excellent wear resistance and low risk of blockage.
- Supporting metal structural parts including screen frames and support ribs.
3. Fastening and Clamping Metal Components
- Special Bolts for Liners: Made of high-strength wear-resistant material, resistant to vibration and loosening, suitable for heavy-duty and high-impact conditions.
- Pressure Bars, Pressure Plates & Wedge Blocks: Used for liner positioning and locking, ensuring firm installation and easy disassembly.
- Supporting fasteners including locating pins and lock washers.
4. Inlet/Outlet and Hollow Shaft Metal Components
- Hollow Shaft Sleeves & Bearings: High-precision machined, wear-resistant and compression-resistant, ensuring stable operation of the transmission system.
- Inlet/Outlet Liners, Feed Hopper Wear Plates & Discharge Elbow Parts: Resistant to material scouring, suitable for both slurry and dry material conditions.
- Transmission connecting metal components such as flanges and end covers.
5. Other Structural Metal Components
- Transmission system metal parts including couplings, bearing housing accessories and gear guards.
- Auxiliary precision metal components including sealing pressure rings, retaining rings and brackets.
II. Product Materials and Performance Features
High-Strength Wear-Resistant Materials for Various Conditions
We use professional grinding materials including high manganese steel, high-chromium alloy and wear-resistant alloy steel, with formulas optimized for high impact, severe abrasion and wet slurry environments, delivering high hardness, good toughness and stable service life.
High Casting and Machining Precision
Combined precision casting and CNC machining ensure tight dimensional tolerances and perfect matching with original equipment mounting interfaces, allowing direct installation and replacement without secondary machining.
Excellent Impact and Fatigue Resistance
Suitable for continuous heavy-duty and high-impact operation of ball mills; components resist cracking, deformation and fracture, ensuring high equipment stability.
Strong Versatility and Customization
Standard models are interchangeable; non-standard and imported ball mill parts can be customized based on drawings, samples and on-site measurements.
Easy Installation and Maintenance
Reasonable structural design enables convenient assembly and disassembly, greatly shortening mill maintenance and replacement time and reducing mine downtime losses.
III. Application Scope
- Applicable Equipment: Grate type ball mills, overflow type ball mills, dry ball mills, wet ball mills, mineral processing ball mills and building material raw material ball mills.
- Applicable Industries: Ferrous metal mines, non-ferrous metal mines, sand & aggregate processing, cement & building materials, metallurgy, chemical engineering, electric power and others.
- Applicable Conditions: High-hardness ore grinding, dry/wet grinding operations, bulk material grinding, heavy-duty continuous operation and highly abrasive mining environments.
IV. Core Advantages of Hainan Sikejia Mining Equipment
Professional Experience in Manufacturing Grinding Metal Components
With deep roots in the field of mining mill accessories, we understand ball mill structures and on-site pain points. Our products are designed for practical applications with high stability.
Full-Process Quality Control
We implement strict quality control from raw material spectral inspection and heat treatment to finished product hardness and dimensional testing, ensuring reliable performance.
Comprehensive Non-Standard Customization Capability
We support customization based on drawings, samples and on-site measurements, and can quickly provide dedicated metal components for various domestic and imported ball mills.
Sufficient Stock and Efficient Delivery
Regular wearing parts such as standard bolts, pressure bars and small liners are in stock; customized large liners and diaphragm plates feature short production cycles to meet emergency repair needs.
Factory Direct Supply with High Cost Performance
Direct source production eliminates middleman margins with transparent pricing. Discounts are available for bulk orders, accompanied by quality warranty and technical support.
V. Customization and After-Sales Service
- Free technical services including accessory selection, material matching and installation guidance for ball mill parts.
- Support for batch customization and long-term fixed supply to ensure stable accessory provision for mining enterprises.
- Official quality warranty; after-sales support is provided for non-artificial quality defects.
- Integrated supporting solutions for ball mill accessories to enable one-stop procurement.
VI. FAQ
How often are ball mill liners replaced?
Depending on ore hardness and operating hours, the service life of liners under normal conditions is 6–18 months. Wear-resistant materials such as high-chromium alloy can effectively extend replacement cycles.
Are metal components interchangeable between different brands of ball mills?
Most models are not interchangeable and require customization based on equipment model, dimensions and structure. We can precisely manufacture matching parts according to parameters.
How to solve frequent loosening and fracture of liner bolts?
Our special high-strength bolts for ball mills, equipped with anti-loosening structures, effectively reduce vibration-induced loosening and fracture and adapt to heavy-duty conditions.
What documents are required for customizing ball mill metal components?
We can complete scheme design, quotation and production quickly upon receipt of equipment model, part dimensions, drawings or samples.
