JC-TIKTOP specializes in the production of various industrial rubber conveyor belts and wear-resistant conveyor belts. It is dedicated to providing stable, reliable and cost-effective ordinary rubber conveyor belt products for industries such as mining, sand and stone aggregate, building materials, grain, chemical industry and ports. The company strictly controls the whole process from raw material procurement, production forming to finished product inspection. The products feature wear resistance, tensile strength, aging resistance and stable operation, which can meet the continuous conveying requirements of various loose materials in normal temperature environment. The company supports the customization of different widths, thicknesses, lengths and structures, and provides customers with one-stop conveyor belt solutions.
1. Introduction to General Rubber Conveyor Belts

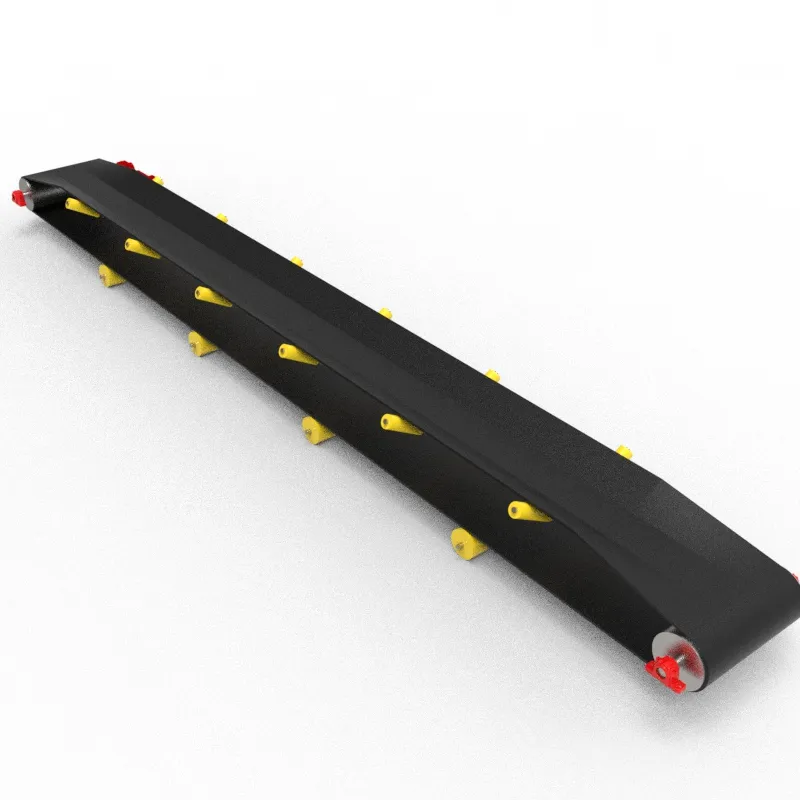

The ordinary rubber conveyor belt is a general-purpose conveyor belt formed by vulcanization, with multiple layers of rubber canvas or nylon core as the skeleton and wear-resistant rubber covering the upper and lower parts. It has a simple structure, wide applicability and high cost performance, and is the most widely used basic conveyor belt product in industrial conveying.
1. Product Structure
Top cover rubber: A wear-resistant rubber layer that protects the belt body, resists impact and is wear-resistant
Bottom cover rubber: wear-resistant and anti-slip rubber, which fits closely with the drum to reduce friction loss
Skeleton layer: Canvas core, nylon core, etc., provide tensile strength and ensure the belt body is not easily stretched and deformed.
Edge rubber: Thickened edge wrapping to prevent delamination and cracking and extend service life
2. Main Types
Canvas core rubber conveyor belt: affordable, suitable for light and medium-light material conveying
Nylon (NN) rubber conveyor belt: Higher strength, good elasticity, suitable for medium and long-distance transportation
General-purpose wear-resistant rubber conveyor belt: universal type, suitable for conveying sand, gravel, ore, coal, grain and other materials
3. Product Features
Good wear resistance, suitable for conveying abrasive materials such as sand, gravel and ore
The belt body is soft, has good troughability, and materials are not easy to spill.
High tensile strength, stable operation, and resistance to tensile deformation
Resistant to aging and flexing, with a long service life
Easy to install and maintain, suitable for all types of belt conveyors
Width, length, thickness and joint mode can be customized according to requirements
II. Scope of Application
Applicable industries: mining, sand and aggregate, building materials and cement, grain processing, chemical industry, ports and terminals, construction waste treatment, etc.
Applicable materials: loose materials such as ores, sand and gravel, coal, grain, chemical fertilizers, building material raw materials, and construction waste
Applicable working conditions: normal temperature environment, horizontal conveying, small-angle inclined conveying, and medium and short-distance continuous conveying scenarios
III. Product Specifications (Customizable)
Width: 100mm～2200mm
Thickness: 3mm～15mm
Length: Customized according to the length of the conveyor
Number of skeleton layers: 2 to 10
Inclination angle: Generally ≤20° (adjustable according to material properties)
IV. Core Advantages of JC-TIKTOP
Adopts high-quality rubber and skeleton materials, with mature vulcanization process. The belt body is non-delaminating, non-cracking, wear-resistant and durable.
Suitable for most conventional conveying scenarios, it can be matched with various general belt conveyors and has strong interchangeability.
The width, length, thickness and rubber surface type can be customized according to the size of the customer's conveyor to meet the needs of different equipment.
No middleman price difference, better price for bulk purchases, suitable for long-term bulk use in mines and sand and gravel plants.
We have standard specifications in stock for fast delivery; we also provide technical support such as conveyor belt selection, installation and jointing.
V. Application Scenarios
Material Conveying in Mining Crushing Systems
Finished product transportation after screening in sand and gravel production line
Raw material and finished product transportation in grain and feed processing plants
Cement and stone transportation in building material factories
Bulk material transfer at ports and yards
Conveying for construction waste treatment production lines
VI. Frequently Asked Questions (FAQ)
It is not recommended to convey high-temperature materials. Ordinary rubber conveyor belts are suitable for normal-temperature materials, and special heat-resistant conveyor belts must be selected for high-temperature materials.
Common mechanical joints and vulcanized joints are available. Mechanical joints can be used for short-distance and light-duty working conditions; for long-distance and heavy-duty applications, vulcanized joints are recommended as they offer a longer service life.
It is determined according to the conveying capacity, material particle size and conveyor model. Our company can provide free selection suggestions based on the parameters.
Please provide the width, length, thickness, number of skeleton layers, application scenario, etc. If you have drawings, we can directly customize according to the drawings.
