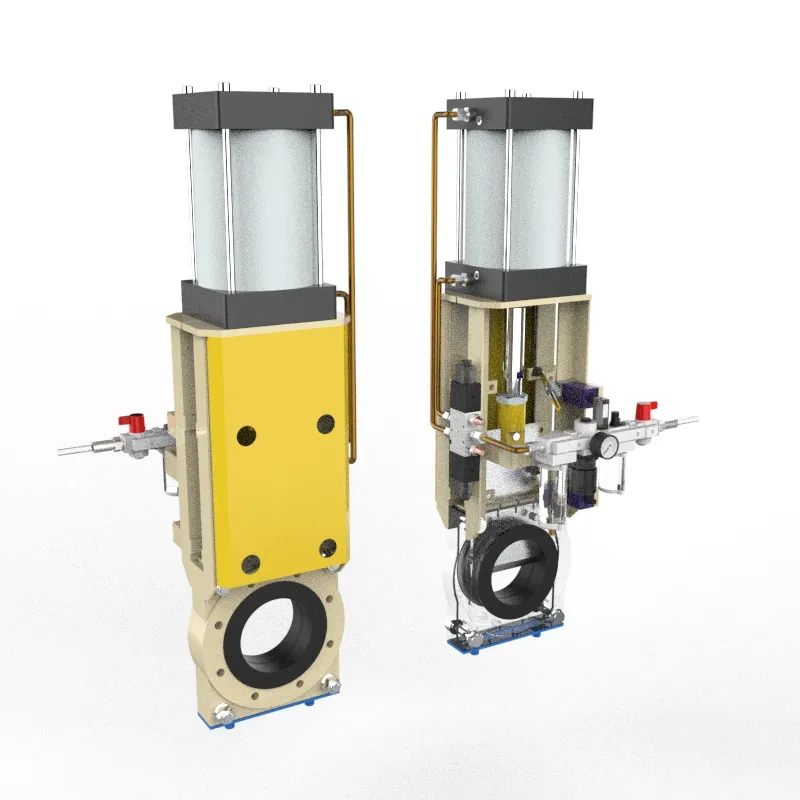

Pneumatic Knife Gate Valve
short description:
JCH-TIKTOP specializes in the production of knife gate valves, covering various driving modes including manual, pneumatic and electric. The valve body features wear-resistant sealing and a smooth flow passage without blockage. It is suitable for scenarios such as mine slurry, tailings mud, sewage discharge and others. With a compact structure and easy opening and closing, non-standard customization is supported.
content details
1. Product Introduction of Knife Gate Valves
II. Main Types of Knife Gate Valves
By driving method
Manual knife gate valve: Driven by handwheel, it has a simple structure and convenient operation, suitable for on-site manual control.
Pneumatic knife gate valve: Driven by a pneumatic actuator, it enables remote control, has fast opening and closing speed, and is suitable for automated pipelines.
Electric knife gate valve: Equipped with an electric actuator, it can accurately adjust the opening and is compatible with remote automatic control systems
Classified by connection method
Wafer-type knife gate valve: compact in size, easy to install, suitable for pipelines with limited space
Flange gate valve: firm connection, strong sealing performance, suitable for high-pressure and large-diameter pipelines
Classified by sealing material
Wear-resistant rubber-sealed knife gate valve: Elastically sealed with good sealing performance, suitable for slurry and mud working conditions
Metal hard-seal knife gate valve: high temperature and wear resistant, suitable for slurry working conditions with high particle size
III. Core Components
Gate plate: Made of stainless steel or wear-resistant alloy, with a smooth surface, enabling smooth opening and closing without material jamming.
Valve body: Made of cast steel/wear-resistant cast iron, with high structural strength, resistant to erosion and deformation.
Sealing ring / packing: Made of wear-resistant rubber, flexible graphite and other materials, with reliable sealing and leak-proof performance.
Actuator: Manual gearbox, pneumatic actuator, electric actuator, suitable for different control requirements
Fasteners, brackets and other supporting components feature high versatility and easy replacement.
IV. Product Performance Characteristics
Straight-through flow passage without clogging
Groove-free and dead-end-free structure allows smooth passage of ore pulp, mud and granular materials, eliminating gate jamming and material blockage issues
Compact structure with small footprint
Thin valve body design, small installation space, suitable for layout in mine pipeline dense scenarios
Good wear-resistant sealing performance
Special wear-resistant sealing material resists particle erosion, ensuring reliable sealing and long service life.
Light opening and closing with low resistance
The gate plate is thin with small friction, making manual operation effortless. Pneumatic or electric operation is stable with low energy consumption.
Strong adaptability and complete specifications
Full range of nominal diameter specifications, compatible with various actuation and connection methods to meet different pipeline working conditions
Easy maintenance and low cost
Fewer wearing parts, convenient replacement of sealing parts, and lower overall operation and maintenance costs than conventional valves
V. Scope of Application
Applicable industries: Mineral mining and beneficiation, tailings dry discharge, coal washing and beneficiation, metallurgical chemical industry, environmental protection sewage treatment, sand and mud transportation
Applicable media: slurry, tailings mud, sewage, coal slime, ash slurry, fiber pulp, sewage containing particles
Applicable working conditions: On-off control of slurry pipelines, pipeline switching for sewage discharge, regulation of tailings pipelines, and industrial sewage discharge
VI. Standard Product Specifications (Non-standard Customization Supported)
Nominal diameter specification: DN50～DN800
Connection method: Clamp type, Flange type
Actuation methods: Manual, Pneumatic, Electric
Valve body material: Cast steel, wear-resistant cast iron
Sealing form: Soft seal (rubber), hard seal (metal)
VII. Core Advantages of Hainan Sikejia Mining Equipment
Strong adaptability to working conditions
Specially designed for mineral slurry and mud particle media in mining applications, solving industry pain points such as material blockage and seal wear.
Wear-resistant and durable material
The valve body and sealing parts are made of special wear-resistant materials, adapting to strong abrasive working conditions and extending the service life of the valve
Complete specifications and flexible customization
We can customize knife gate valves with different diameters, pressures, materials and driving methods to meet the needs of special pipelines
Ample stock for fast delivery
In-stock supply for standard manual and pneumatic knife gate valves, and rapid processing and production available for non-standard valves
Direct supply from the manufacturer with high cost performance
Direct manufacturing without middlemen, transparent pricing, discounts available for bulk purchases, and warranty and technical support are provided.
VIII. Customization and Service Support
Supports customizing non-standard knife gate valves according to pipeline dimensions, medium characteristics and control requirements
Provide customized services for vulnerable accessories such as gate valve sealing rings and gate plates separately
We provide free technical guidance for valve selection, pipeline installation, operation and maintenance.
We can undertake long-term fixed-point supporting supply for mining, mineral processing and environmental protection projects
IX. Frequently Asked Questions (FAQ)
Is a knife gate valve suitable for conveying slurry?
Suitable. The gate valve features a straight-through flow channel with no clogging and is a dedicated valve for slurry and tailings mud pipelines.
What should I do if the sealing parts of the knife gate valve wear out quickly?
Our wear-resistant special sealing accessories can be selected, which are suitable for working conditions with particulate media and greatly extend the service life.
How to choose between manual, pneumatic and electric knife gate valves?
Manual control is selected for on-site manual operation; pneumatic control is chosen for remote automated control; and electric control is recommended for precise regulation.
What parameters are required for a custom knife gate valve?
Just provide parameters such as passage diameter, pressure, connection method, drive type and medium characteristics.
