1. Working Principle of Hydrocyclone

II. Product Structure and Composition

1. Cylinder section: Composed of a cylinder plus a cone, it is the core working area for centrifugal classification.

2. Feed inlet: Tangential feeding structure ensures stable cyclone flow of ore pulp and higher classification efficiency.

3. Overflow port / overflow pipe: Discharges fine particle pulp, and its size can adjust the classification granularity as required.

4. Underflow port: Discharges coarse-grained materials, made of wear-resistant material, resistant to scouring and not easy to wear

5. Lining structure: High-wear-resistant polyurethane integral lining protects the metal shell and extends its service life.

6. Flange and fasteners: Standardized connection, easy installation, suitable for pipelines and cyclone group frames

III. Main Product Types

1. Classified by usage function

   • Classification hydrocyclone: Used for classifying coarse and fine particles in ore grinding circuits to achieve closed-circuit grinding.

   • Desliming cyclone: Removes fine mud impurities from ore pulp and improves the grade of concentrate

   • Concentration cyclone: Concentrates and dewaters tailings slurry to reduce moisture content

   • Heavy medium cyclone: Used for heavy medium separation of coal and ores to recover dense medium.

   • Desanding cyclone: Removes coarse sand particles from ore pulp and sewage, protecting subsequent equipment

2. Classified by combination form

   • Single hydrocyclone: Suitable for small flow rate and simple classification working conditions

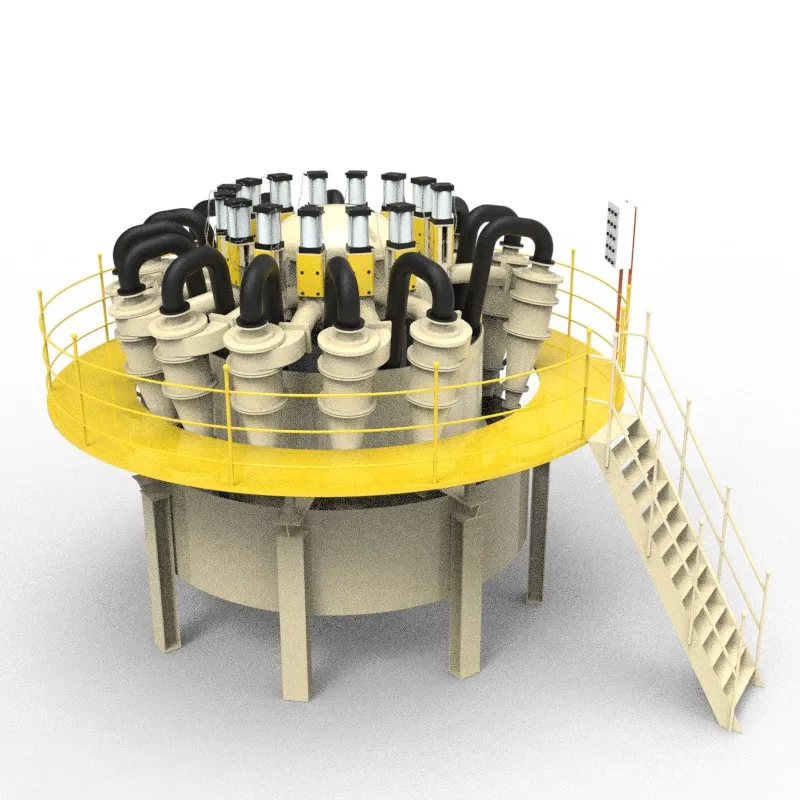

   • Cyclone group: Installed in parallel combination of multiple units to meet the demand for large flow and large-scale production

3. Classified by lining material

   • Polyurethane-lined hydrocyclone: wear-resistant and corrosion-resistant, suitable for conventional slurry working conditions in mines

   • Wear-resistant ceramic lined hydrocyclone: Suitable for high-hardness, highly abrasive coarse-grained materials

IV. Product Performance Characteristics

1. High classification efficiency and precise particle size control

   The centrifugal force field has high strength, the separation of coarse and fine particles is thorough, and the classification particle size can be flexibly adjusted through the overflow port and the underflow port.

2. High wear-resistant lining for long service life

   It adopts an integrally cast polyurethane lining with high elasticity and wear resistance, which resists slurry scouring and corrosion, and is far superior to cast iron materials.

3. Simple structure with no moving parts

   No driving components such as motors and bearings, extremely low failure rate, and stable and reliable operation.

4. Large processing capacity and small floor space

   Strong single-unit processing capacity; the cyclone group adopts modular combination, featuring small floor area and flexible layout.

5. No power consumption and low operating cost

   It only relies on pump pressure for feeding, requires no additional power, has low energy consumption, and the overall operation and maintenance costs are economical.

6. Easy to install and maintain

   The only vulnerable parts are the lining and the nozzles, which are easy to replace without the need for complex tools or shutdown and modification.

V. Scope of Application

• Applicable industries: Mineral processing of metal mines, classification of sand and stone aggregates, coal washing and dressing, tailings dewatering and discharge, environmental protection sewage treatment, chemical slurry treatment

• Applicable processes: Grinding and classification, tailings desliming, pulp thickening, dense medium recovery, mud desanding, fine material separation

• Applicable media: Various ore pulp, sand and gravel slurry, tailings slurry, dense medium suspension, solid-containing industrial sewage

VI. Standard Product Specifications (Custom Non-standard Sizes Available)

• Nominal diameter: Φ50mm～Φ660mm

• Processing flow rate: customized according to the cyclone specifications and feed pressure

• Lining material: High wear-resistant polyurethane, wear-resistant ceramic

• Combination form: Single unit, 2-unit/4-unit/6-unit/8-unit and above cyclone groups

• Installation method: Vertical fixed installation, frame-type integrated installation

VII. Core Advantages of Hainan Sikejia Mining Equipment

1. Special Design for Mining Conditions

   The structure is optimized to address the characteristics of strong abrasiveness and large concentration fluctuations of the pulp, resulting in more prominent classification accuracy and stability

2. Polyurethane lining process is mature

   Integrally cast and formed in one piece, without splicing or delamination, wear-resistant and tear-resistant, greatly improving the service life

3. Complete specifications and flexible customization

   We can customize a single cyclone or a complete cyclone group according to the processing capacity, classification particle size and slurry characteristics.

4. Sufficient stock available for fast delivery

   In-stock products are readily available for conventional specifications of hydrocyclones, as well as liners, nozzles and other accessories; the production cycle for non-standard combined equipment is short.

5. Direct supply from the manufacturer with high cost performance

   Direct manufacturing without middlemen, complete warranty coverage and process selection guidance are provided, suitable for all types of mineral processing production lines.

VIII. Customization and Service Support

1. Supports the customization of hydrocyclones and cyclone groups according to the grinding process, processing capacity and classification particle size requirements

2. We provide separate supply and customization of vulnerable accessories such as polyurethane liners, overflow ports, and underflow ports.

3. We provide free process flow design, equipment selection, installation and commissioning as well as operation guidance.

4. We can undertake long-term supporting supply and equipment maintenance services for mineral processing plants and tailings systems.

IX. Frequently Asked Questions (FAQ)

1. What are the main links in mineral processing where hydrocyclones are used?

   It is mainly used in core hydrometallurgical processes such as closed-circuit classification of ball mills, desliming and thickening of tailings, heavy medium recovery, and fine mud removal.

2. How to adjust the classification particle size of the hydrocyclone?

   The classification particle size can be controlled by replacing overflow ports and underflow ports of different sizes, or by adjusting the feed pressure.

3. What are the vulnerable parts of the hydrocyclone?

   The core wearing parts are polyurethane lining, overflow port and underflow port, which are easy to replace and have low maintenance cost.

4. How to select a hydrocyclone for high-flow conditions?

   For high-flow scenarios, it is recommended to select a cyclone bank with multiple units connected in parallel, which features stable throughput, uniform classification effect, and is suitable for large-scale production.
