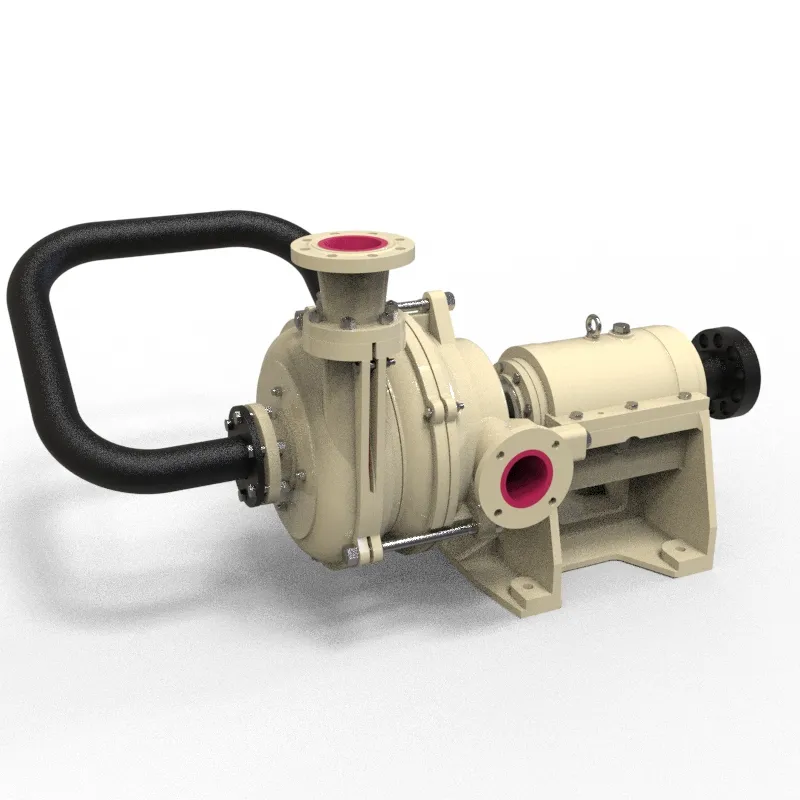

I. Product Introduction

II. Core Wear-Resistant Parts

1. High-pressure Wear-resistant Impeller

   Designed for high-pressure working conditions, it features high structural strength, resistance to erosion and cavitation, and ensures stable feeding pressure.

2. Front and Rear Guard Plates and Pump Body Protective Sleeve

   Made of high-chromium alloy, it resists the high-speed scouring of high-concentration slurry and extends the service life of the pump body.

3. High-pressure pump body shell

   Molded with thickened cast steel, it has strong pressure-bearing capacity and is suitable for the high-pressure pressure-keeping working condition of the filter press in the later stage.

4. Sealing Assembly and Shaft Sleeve

   High-pressure special sealing structure, anti-leakage, wear-resistant, suitable for long-term continuous operation

5. Support, Coupling and Transmission Accessories

   Heavy-duty reinforced design for stable operation, vibration resistance and low failure rate

III. Product Performance Characteristics

1. Adjustable pressure, suitable for the entire filter press process

   It can realize large-flow feeding in the early stage and high-pressure holding in the later stage, with stable pressure output, meeting the requirements of different working stages of the filter press.

2. Strong high-pressure bearing capacity

   The pump body and flow-passing components are both designed for high-pressure working conditions, ensuring stable pressure resistance and guaranteeing the efficient completion of filter press operations.

3. Excellent wear resistance

   The flow-passing components are made of high-chromium wear-resistant alloy, which is suitable for highly abrasive media such as high-concentration tailings slurry and mud, ensuring a long service life.

4. Stable operation and less clogging

   The flow channel is designed to be spacious and reasonable, allowing large particles of material to pass smoothly without jamming or clogging the pump, ensuring continuous operation.

5. Strong versatility and wide adaptability

   It can be matched with various frame filter presses, chamber filter presses and belt filter presses, with standard installation dimensions and convenient replacement and modification.

6. Easy maintenance and low operation and maintenance costs

   The generalizability of wearing parts is high, disassembly and assembly are convenient, and the maintenance and replacement time is greatly shortened.

IV. Scope of Application

• Suitable equipment: Filter press, chamber filter press, belt filter press, tailings dry discharge filter press unit

• Applicable materials: mine tailings slurry, mineral processing slurry, metallurgical slag slurry, environmental protection sludge, coal slurry, sand and gravel slurry

• Applicable industries: Metal mines, sand and stone beneficiation, coal washing, metallurgical and chemical industry, environmental protection sewage treatment, solid waste dry discharge

• Applicable working conditions: High-concentration slurry filtration, high-pressure feeding, tailings dry discharge, solid-liquid separation systems

V. Standard Product Specifications (Custom Non-standard Products Available)

• Structural form: Horizontal high-pressure cantilever structure

• Core material: High-chromium wear-resistant alloy flow parts, thickened cast steel pump body

• Pressure range: Multiple specifications of high-pressure models are available, which can be customized according to the working conditions of the filter press.

• Flow regulation: Equipped with a frequency conversion system to realize intelligent adjustment of flow rate and pressure

• Installation method: Horizontal fixed installation, adapted to the standard layout of the filter press room

VI. Core Advantages of Hainan Sikejia Mining Equipment

1. Strong targeting of working conditions

   It is deeply adapted to the characteristics of high pressure, high concentration and continuous operation in the feeding of filter presses, and the product performance is more in line with the on-site use needs.

2. High-pressure structure is stable and reliable

   Combined precision casting and CNC machining endow the pump with strong pressure-bearing capacity, ensuring no deformation or leakage during long-term high-pressure operation.

3. Outstanding Wear-Resistant Material Performance

   Special high-chromium alloy material is optimized for the scouring of ore slurry particles, greatly reducing the wear and loss of accessories

4. Sufficient stock + rapid customization

   Standard models of the whole machine and accessories such as impellers and wear-resistant plates are always in stock, and non-standard pump types can be quickly customized and produced according to working conditions

5. Direct supply from manufacturers, higher cost performance

   We are the original manufacturer with no middlemen markup. Bulk purchases and long-term cooperation are eligible for discounts, and we provide comprehensive warranty and technical support.

VII. Customization and Service Support

1. We support customizing special feed pumps according to the filter press model, inlet pressure, flow rate and material characteristics

2. Provide full accessory processing services for filter press pumps according to drawings and samples

3. We provide free guidance on pump type selection, pressure matching, installation and commissioning.

4. We can undertake long-term fixed-point supporting supply for mining, mineral processing and environmental protection projects.

VIII. Frequently Asked Questions (FAQ)

1. Can a filter feed pump be replaced with an ordinary slurry pump?

   Not recommended. Ordinary slurry pumps have insufficient pressure and weak pressure-bearing capacity, which cannot meet the high-pressure holding requirements of the filter press in the later stage and are easy to affect the dewatering effect.

2. What causes unstable pressure of the filter press feed pump?

   This is mainly caused by impeller wear, air leakage in the seal or insufficient pressure-bearing capacity of the pump body structure. Selecting our high-pressure special pump models can effectively solve this problem.

3. How often are the accessories generally replaced?

   Depending on the abrasiveness of the slurry, the service life of the impeller and guard plate under normal working conditions is 3 to 12 months, and high-chromium alloy materials can significantly extend this cycle.

4. What parameters are required for customizing a filter press feed pump?

   Provide parameters such as feed flow rate, working pressure, material concentration, and filter press model, and you will get professional selection and quotation.
